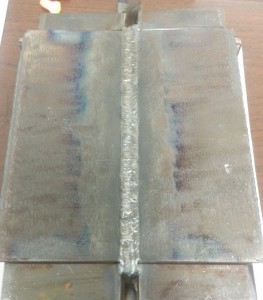

When we last left my certification test plate, it was sitting on my instructor’s desk, awaiting its destruction.
It was going to be cut into 5 pieces: The two ends with the strongbacks on them were to be cut off 1in in from the end, then an inch and a half from the newly created ends, they were to be cut again, leaving three “coupons”. The center one, with my ID stampings was to be saved for identification purposes, and the other two were to be bent, one in each direction, for testing purposes.

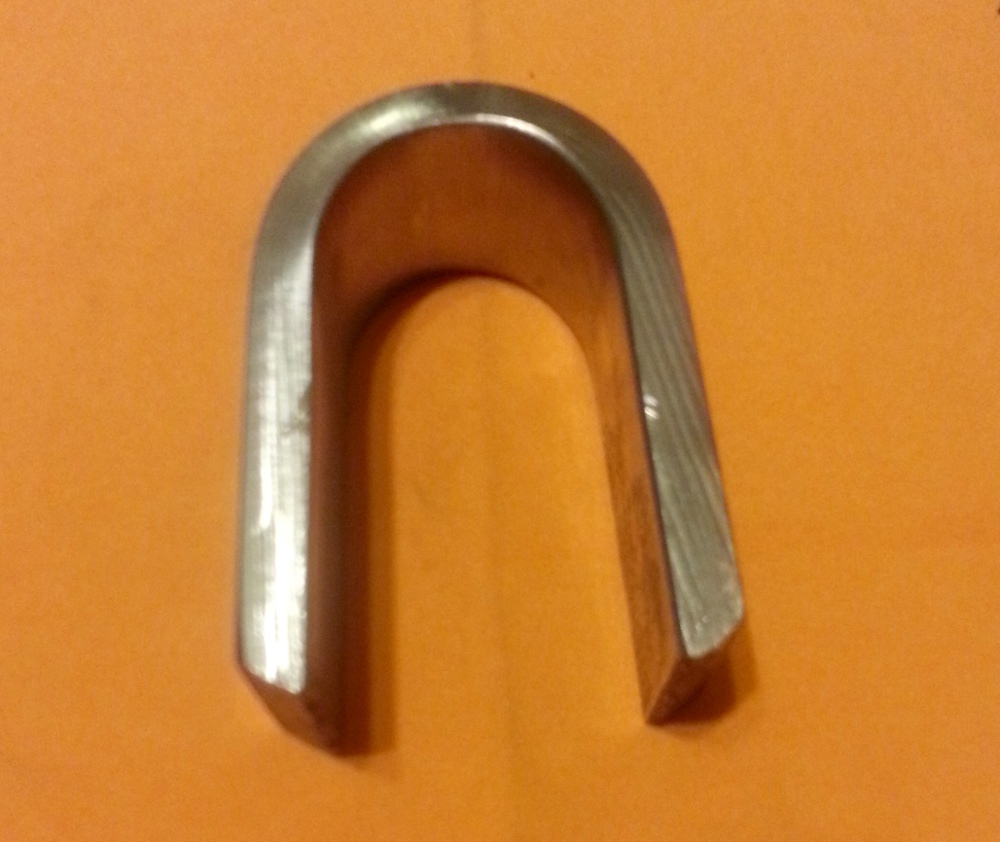

Like this
So, did I pass the test?
The short answer is no.

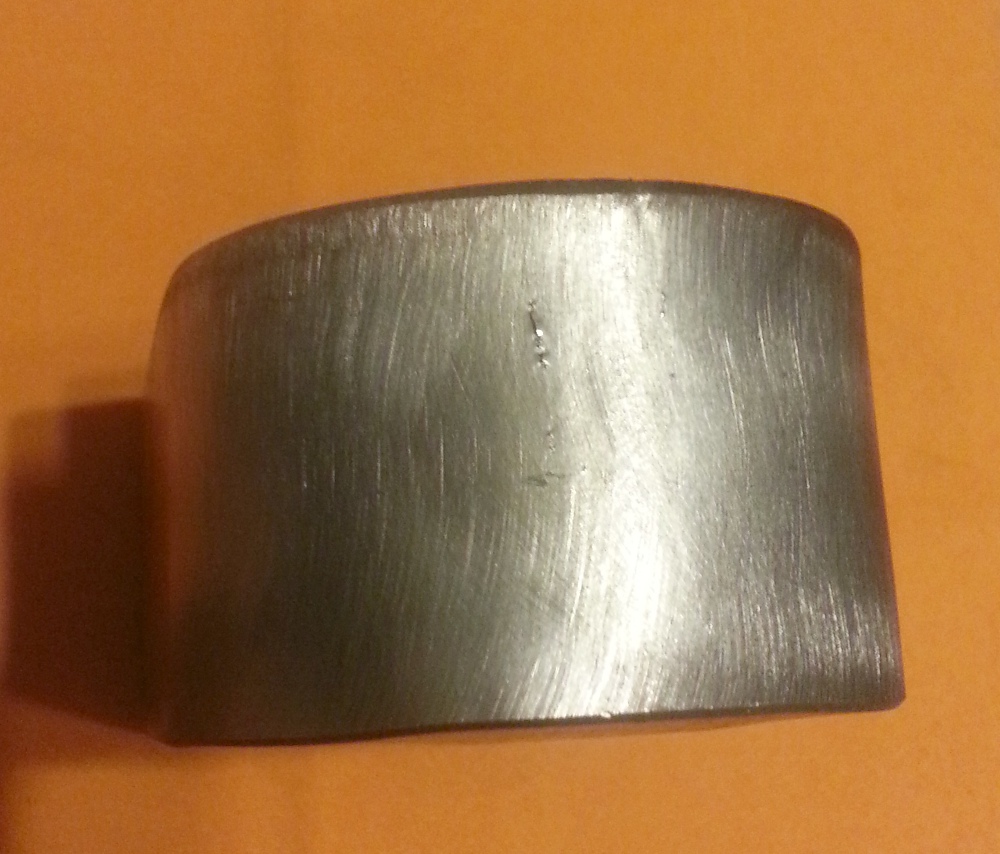

The long answer is, this is what failed me
That wrinkle you see about 1/3 of the way from the top is a crack that is 5/32 of an inch long. I am allowed a 1/8 inch lock crack.
FAIL
I’m trying not to feel bad about it, and being unsuccessful. I took my direct overhead test today, and the attitude from this failure is welded into every 32nd of every inch of that plate. We’ll see tomorrow if anguish welds better than happiness. Also, I was informed that I will not be allowed to retest my vertical weldment until next Monday.
Needless to say, the next liberal arts major in my general vicinity that whines about how hard his or her sociology final was is going to find themselves about a foot heavier. Because one of my feet will have been broken off in their ass.
